200w/300w/400w/500w Spindle Engraving Machine Spindle Motor Air-cooling cnc Spindle DC Motor CNC Engraving Machine ER11 3.175mm

Artikelnummer: 20065820f0e3b135a1fd1190b351d75c6b9

Preis:
€ 63.32 EUR
Lager:
auf Lager

200w/300w/400w/500w Spindle Engraving Machine Spindle Motor Air-cooling cnc Spindle DC Motor CNC Engraving Machine ER11 3.175mm Collets

Package include:

1PCS  200w spindle motor

Feature:

Spindle motor: new DC motor

Operating voltage: 12-48VDC

Power: 200W

Speed: 3000-12000r/min (12V-3000 rpm, 24V-6000 rpm, 36V-9000 rpm, 48V-12000 rpm)

Torque:280mN.m

Insulation resistance: >2 Mohm

Insulation dielectric strength: 400V

Diameter: 52mm

Chuck part length: Arbor part contains nut and sandwich 41MM

Chuck part of the diameter: 16mm (clip default with 3.175MM)

Total length of motor: 141mm (including clamping area and motor)

Spindle radial runout is about 0.01-0.03.

This motor does not have a fan. Do not work continuously for a long time!

A single motor net weight: 620 g

If the motor needs to work long hours, just need to add a cooling fan, forced air cooling, hot, or too long motor

20 (3)


Display seiz:


200W size

Package include:

1PCS  300w spindle motor

Feature:

Spindle motor: new DC motor

Operating voltage: 12-48VDC

Power:300W

Speed: 3000-12000r/min (12V-3000 rpm, 24V-6000 rpm, 36V-9000 rpm, 48V-12000 rpm)

Condition:NEW

Model:300w air cooled spindle motor and

Qty:1set  1pcs spindle +ER11-3.175mm

Spindle Motor:

Work voltage: 12-48VDC

Rotation speed: 3000-12000r/min

Power: 300W

Torque:400mN.m

Insulation resistance:>2Megohm

Dielectric strength:400V

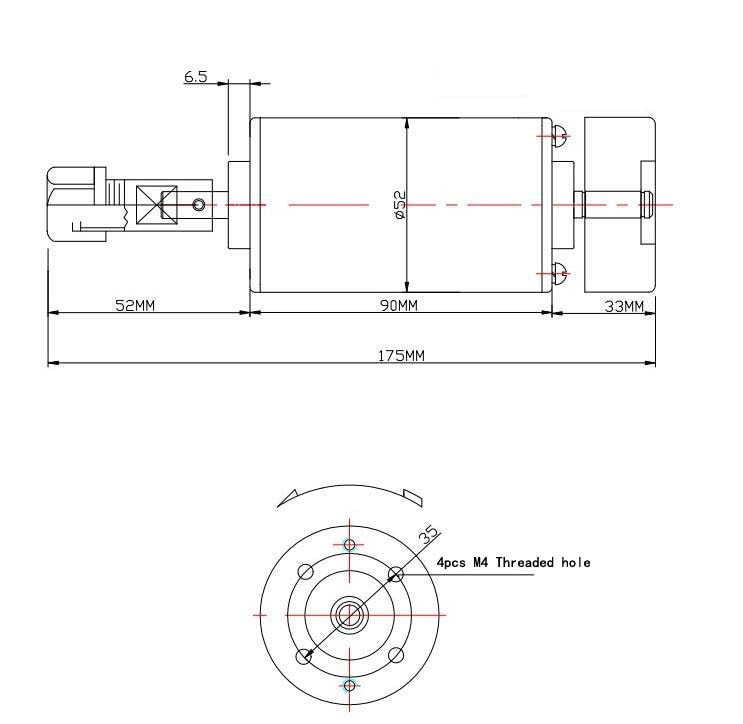

Motor Length :  175mm

Diameter:52mm

Axis collet Length: 48mm

Diameter of Axis collect holder:16mm

ER11 chuck : 3.175

Spindle radial runout is about 0.01-0.03.

If the motor needs to work long hours, just need to add a cooling fan, forced air cooling, hot, or too long motor


36 (3)300W-SIZE


Package include:

1PCS  400w spindle motor

Feature:

Spindle motor: new DC motor

Operating voltage: 12-48VDC

Power:400W

Speed: 3000-12000r/min (12V-3000 rpm, 24V-6000 rpm, 36V-9000 rpm, 48V-12000 rpm)

Condition:NEW

Torque:500mN.m

Insulation resistance:> 2 megohms

Dielectric strength: 400V

Diameter: 52mm

Chuck Part Length: Arbor parts 35mm, (including nuts and sandwich 43mm)

Part chuck diameter: 16mm

Motor length: 185mm (including gripping parts and motor)

Spindle runout of about :0.01-0.03.

Can be used for engraving metal or non-metal and other materials.

Spindle radial runout is about 0.01-0.03.

If the motor needs to work long hours, just need to add a cooling fan, forced air cooling, hot, or too long motor


40400Wsize

Package include:

1PCS  500w spindle motor

Feature:

Spindle motor: new DC motor

Condition:NEW

Working voltage :12-48VDC

Power: 500W

Speed :3000-12000RPM  (12v-3000rpm,24V-6000rpm,36V-9000rpm  .48V-12000rpm)

Torque:550mN.m

Insulation resistance:> 2 megohms

Dielectric strength: 400V

Diameter: 52mm

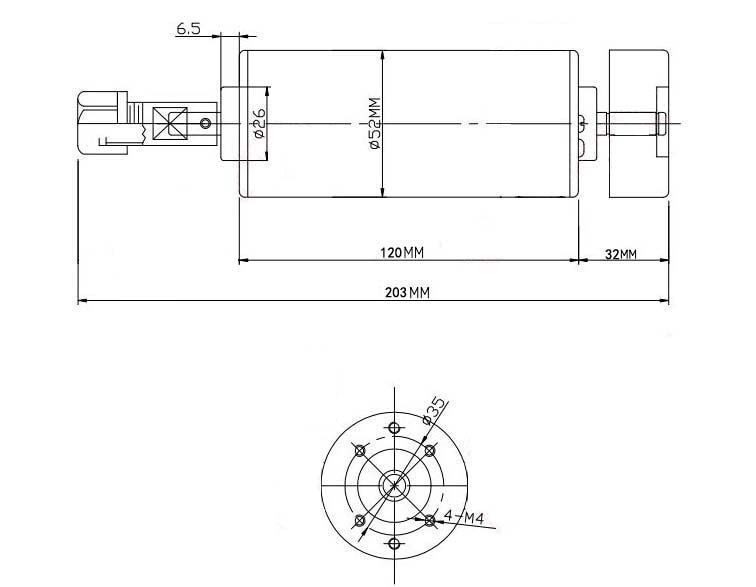

Motor length: 203mm (including gripping parts and motor)

Spindle runout of about :0.01-0.03.

Can be used for engraving metal or non-metal and other materials.

Spindle radial runout is about 0.01-0.03.

If the motor needs to work long hours, just need to add a cooling fan, forced air cooling, hot, or too long motor

50500W-48V
